    Product Description

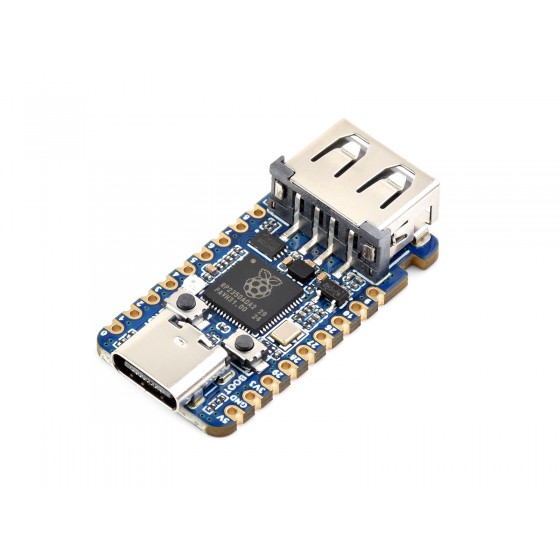

    Waveshare RP2350A USB Mini Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, 150MHz Operating Frequency

    RP2350-USB-A Mini Development Board

    Based On Raspberry Pi RP2350A, Onboard USB Ports

    Castellated module, suitable for SMD applications




    Board specifications

    • RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
    • 520KB of SRAM, and 2MB of onboard Flash memory
    • Type-C connector, keeps it up to date, easier to use
    • Castellated module allows soldering directly to carrier boards
    • USB 1.1 with device and host support
    • Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • Adapting 15 × multi-function GPIO pins
    • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 14 × controllable PWM channels
    • Accurate clock and timer on-chip
    • Temperature sensor
    • Accelerated floating-point libraries on-chip
    • 12 × Programmable I/O (PIO) state machines for custom peripheral support


    Supports C/C++, Arduino IDE

    Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started


    Dual-core, dual-architecture

    Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz


    15 × multi-function GPIO pins

    configurable pin function, allows flexible development and integration


    What's On Board


    outline dimensions


    Wiki: www.waveshare.com/wiki/RP2350-USB-A
