Power Passthrough PCIE Bracket

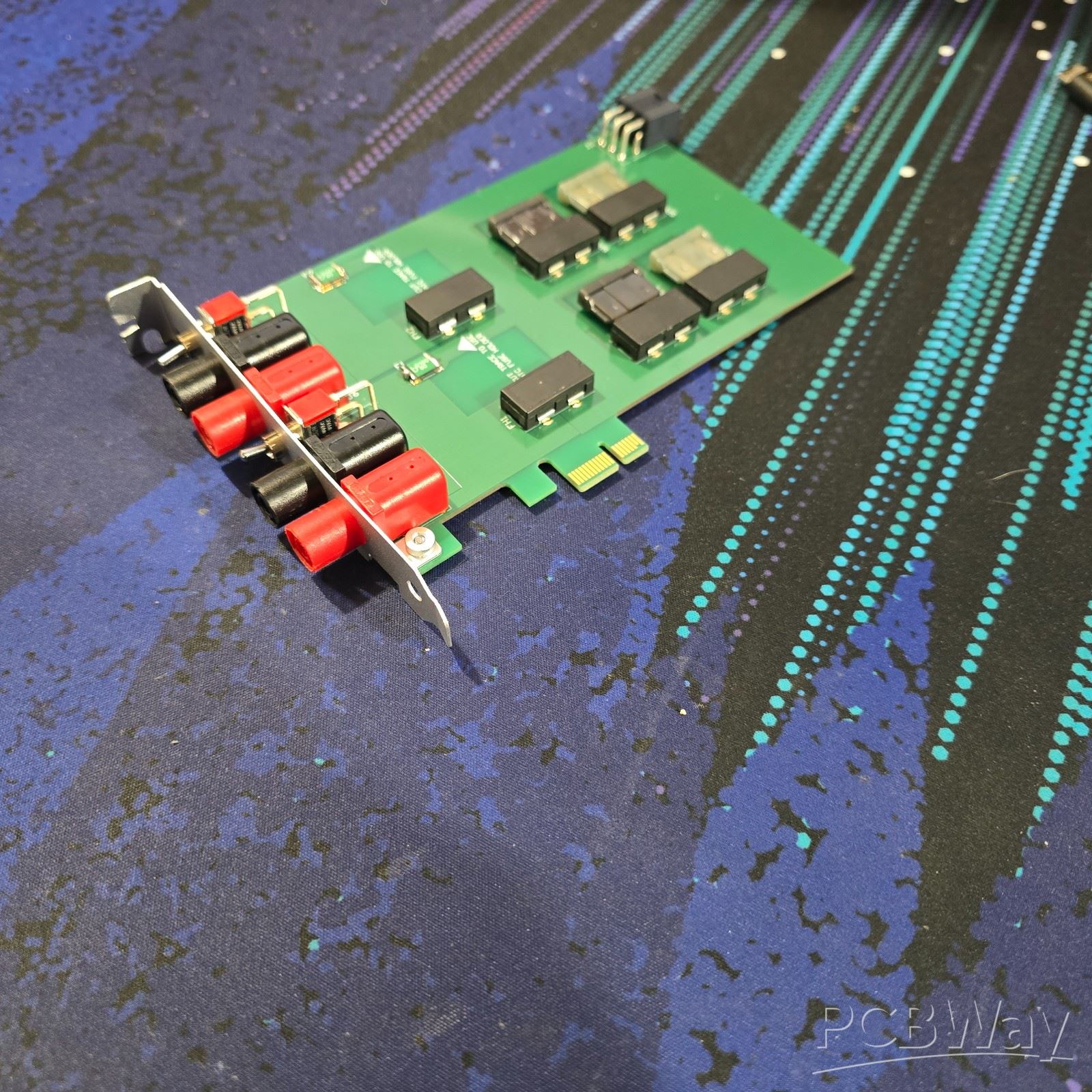

The overall product is a fused and switched twelve-volt power pass through from a computer 6 pin pcie connector to 2 sets of banana jacks. It allows for either the smd mounted fuse or you can cut a trace and use a regular atc fuse. The product came out great, exactly as I had ordered it! It mates with the PCB perfectly and fits directly down into a PCIE slot as expected.




Jan 17,2025
409 viewsReport item
