Eurorack Liberator - Standalone Single to Dual Power Supply Converter

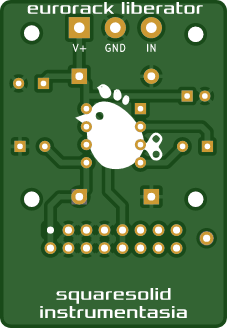

A simple circuit based on LT1054 to convert single power supply to dual power supply that is needed for Eurorack. I design this to use some Eurorack module as a standalone instrument. I also use it to test eurorack module that I build or bought. I added IN pin because I sometime use it for audio output.

Technical Spesification

Max Voltage input +15V
Output Current 100mA
Supply Voltage Range 3.5V to 15V

LT1054 Datasheet: https://www.alldatasheet.com/datasheet-pdf/view/112438/TI/LT1054.html

Check my web: https://instrumentasia.net

Download Gerbers Download BOM(Bill of materials)

Jun 12,2025

5 views

Eurorack Liberator - Standalone Single to Dual Power Supply Converter

An adaptor circuit based on LT1054 to convert single (+V) to dual (V+ & V-) power supply for eurorack module able to deliver max 100mA.
